Screw-Down Roof Mounting
SataMount MRM provides a gasketed, mechanically fastened satellite mounting option for suitable exposed-fastener metal roofs.
Mechanically fastened • SataMount MRM
Designed for exposed-fastener roof panels.

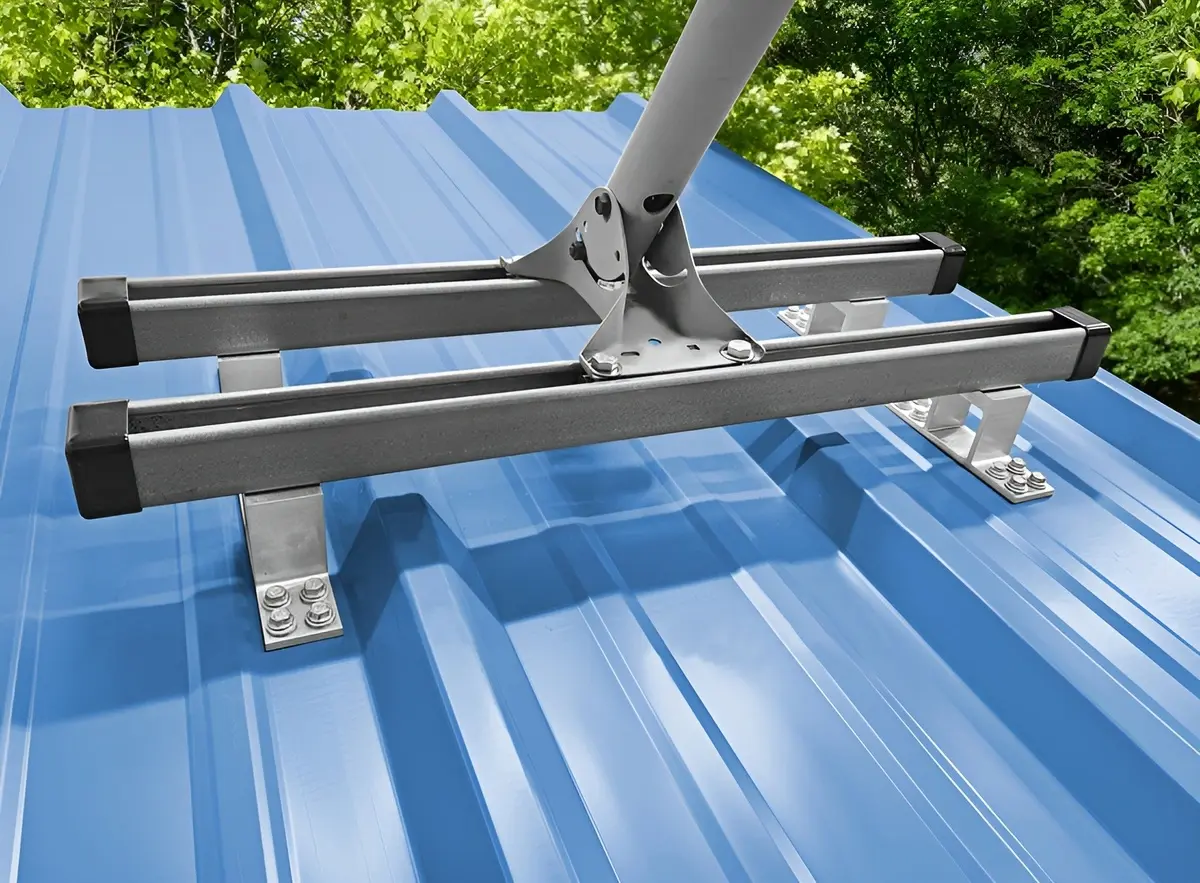

The MRM system uses SataBracket metal roof mounting brackets attached with mechanical fasteners and gaskets. Its mounting hardware supports two 27-inch channels, creating a base for a suitable satellite mounting bracket.
- For roof systems where penetrations are permitted
- Gasketed SataBrackets with multiple fastener positions
- Designed for a panel flat at least 1½ inches wide
- Substrate and fastener suitability must be confirmed

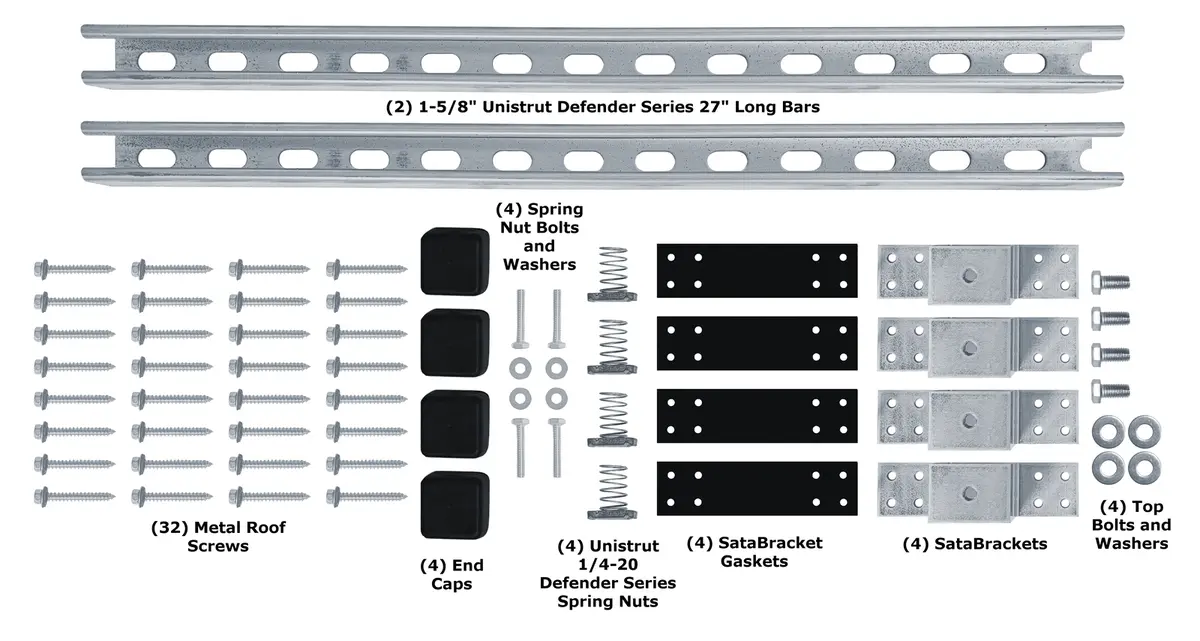

MRM kit overview
| Mounting channels | 2 × 27-inch, 12-gauge P1000T Defender-finish Unistrut |
|---|---|
| Roof brackets | 4 × SataBrackets with gaskets and mounting hardware |
| Channel nuts | 4 × ¼-20 Defender Series spring channel nuts |
| Bolts and washers | 304 stainless steel, including ¼-20 × 1½-inch bolts |
| End caps | 4 × vinyl |
The roof structure, panel profile, fastening substrate and required loads govern final attachment design. Do not assume all substrates provide equivalent pull-out resistance.

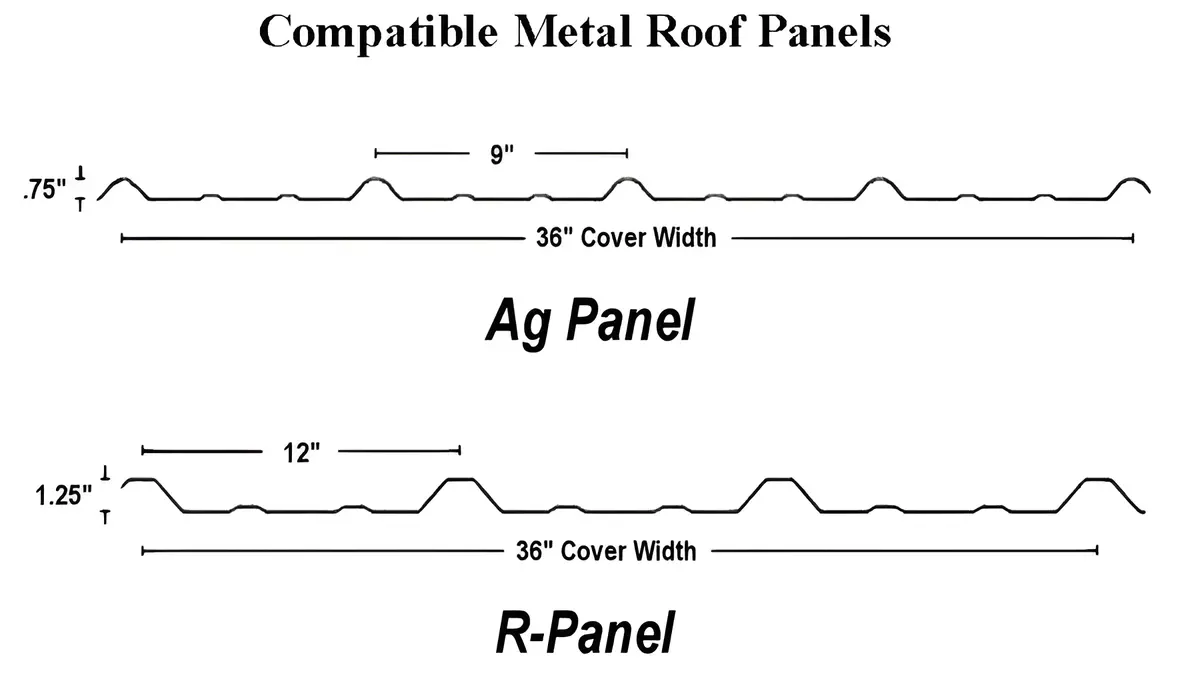

MRM components and compatible panel profiles
Review the MRM kit hardware and representative Ag Panel and R-Panel roof profiles before selecting a mounting location. Confirm dimensions and attachment requirements against the installation instructions.
Illustrations are reference materials. Verify panel geometry, compatible attachments, fasteners, roof structure, and loads before installation.
